• More than 2 Lakhs Installations • l Designed specially to drain sludge and rust laden condensate • l Reliable all digital electronic circuitry • l ON and OFF timing adjustable • l Power & Drain status indicator • l Extended cycle time upto 32 hrs adjustable

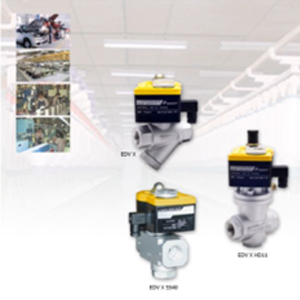

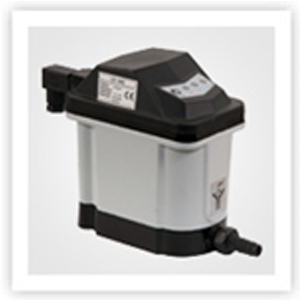

In the progression of
automatic drain valve manufacturing technology,
Trident’s condensate sensing type automatic drain
valves are the newest. Quintessentially useful and
reliable, these valves sense the condensate level
for activation instead of working through the cycle
timer. The capacitance type of sensor, which can
work on all types of condensates like water, water
plus oil, water plus oil plus dust and more as such,
detects the gradual rise of the level as the
condensate starts collecting in the drain valve.
The controller on the other hand signal the valve to
open when the condensate reach the upper level. The
condensate now drains slowly reaching the lower
level. The controller thereby switches off the valve
hence stopping the draining. This controller, with
the help of indications from 3 LED displays,
responsibly browses for any failures in the valve
and take corrective actions accordingly; this it
does very routinely which keeps a check on the
health of the system. A Test/Manual override button
also facilitates the process. This operational
method of these valves negate any loss of compressed
air hence saving a vast amount of energy. The manual

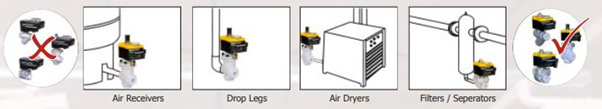

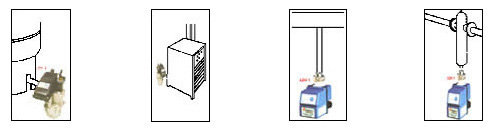

drains of the equipment can be easily replaced by
fitting the Trident drain valves on them.

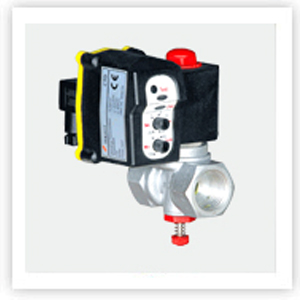

The CTD valve series
represents the ultimate in valve performance. Decades of
experience of valve manufacturing have allowed us to
identify the issues commonly associated with drain
valves and undertake the necessary improvements
required. Today the CTD valve incorporates an
ultra-reliable MCU,which features dual control of both
drain cycle and drain valve open-time. The oversized
orifice design and a specifically designed solenoid
operator section allow rapid discharge of dust and
particles.
Any kind of pneumatic tool
perform its best when it is filtered of the various
contaminants at regular intervals of time. These
contaminants could be dirt, oil and water that come
unfiltered through compressed air. The oil and water
mostly exist in liquid or vapour forms. Getting rid of
these contaminants is a must to prevent any unfavourable

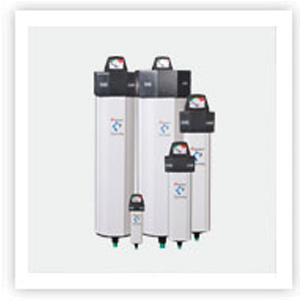

effects on your end products. Trident produces
coalescing filters that help remove liquid oil and
water. The micro filter manufacturing process
consists
of a filter media made up of boro silicate micro glass
fibres. On the other hand, the oil in vapour form is
removed using activated carbon filters.
