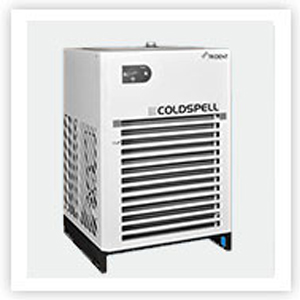

Refrigerated and heatless
are
two broad categories of air dryers available these days.
Talking about air dryers remains incomplete without
mentioning the concept of dew point temperature. It is
the
unit used to measure the dryness of compressed air. At
this
temperature, the moisture present in the compressed air
in
vapour form condenses to form liquid. Similarly,
pressure
dew point temperature and atmospheric dew point
temperature
are the two distinct temperatures of compressed air when
under any kind of pressure and atmospheric pressure
respectively. When we talk about the most advanced and
cheapest mode of drying compressed air, refrigerated air
dryers are quintessential.
Compressed air drying
solutions
just like your unique environment and applications are
not
standard to fit all. They help remove water vapour from
the
compressed air. Therefore, they are often found
frequently
in a variety of industrial and commercial
facilities.
Trident, is one of the leading compressor air dryer
manufacturers, which engineers the drying technology of
your
compressed air keeping several factors in mind such as
your
environment need,your footprint, your energy costs,
maintenance etc.
Operation
The atmospheric contaminants including the water vapour
are
concentrated in the process of air compression. As a
result,
the dew point of the compressed air gets raised in
comparison to the free atmospheric air which leads to
condensation within pipes as the compressed air cools
downstream of the compressor. Users of compressed air
have
to confront a gamut of operational problems if the
compressed air carries excessive water either in liquid
or
vapour phase. Some of them are freezing of outdoor
airlines,
corrosion in piping and equipment, malfunctioning of
instruments that control the pneumatic process, fouling
of
processes and products and more as such.

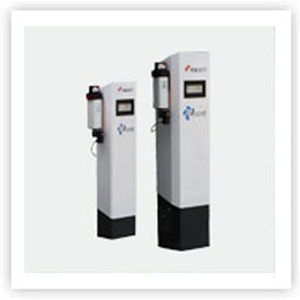

What Trident Offers
Trident pneumatics are perfect examples of vast
knowledge,
rich experience, meticulous engineering and skilled
compressor air dryer manufacturer, which enable it to
develop dryers with highest quality performance. The
Dryspell Plus series launched successfully by Trident in
the
Indian and overseas market is a proof of guarantee,
warranty
and reliability. These dryers are also very economical,
manufactured in large quantities, designed and tested to
provide 100% clean dry oil free compressed air and
require
no maintenance in comparison to the refrigeration dryers
of
it’s range. The Dryspell plus is an ultimate compact
dryer
with valves and piping built into the manifold. These
dryers
are suitable not only for point of use but also are
available for 10, 20, 30, 45, 60, 100, 125,200, 250,
300,
375 scfm. Paint shops, instrumentation, hand tools,
powder
coating, CNC machines, automobile garages, dental
equipment,
pharma are some areas where these dryers are applied
extensively. Some of the key featuresof these dryers
are:-
• Provides manifold construction
• Provides a shuttle valve for low pressure drop that is
controlled by the microprocessor.
• Equipped with a built in microprocessor based
controller.
• Equipped with a pre filter that has a borosilicate
glass
fibre element.
• The pre filter drain valve is not only timer based but
also gets activated by the controller.
Trident products range from the compressor room to all
points of use in the factory due to their vast knowledge
and
advanced technology of air dryers in the field of
compressed
air, gas and fluid separation. The components of these
pneumatics are designed and meticulously matched for
efficient optimum air compressor energy. Trident,
through
their engineering service gives real shapes to various
concepts of new products. This builds a good
relationship
that leads to confidence, reliability and energy savings
for
the coming years.

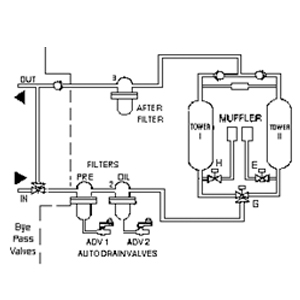

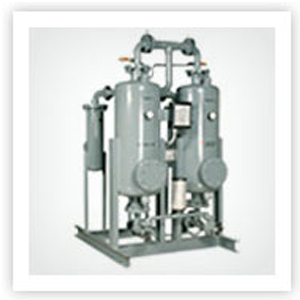

A majority of the Industrial
Compressed Air Systems and different other applications
of
gas and/or air dryers involve the use of Heatless
Compressed
Air and/or Gas Dryer systems. High Pressure Gas and Air
Drying Systems also involve the use of these compressed
air
and gas dryers in many of their applications. Trident
Pneumatics excels in heatless air dryer
manufacturing.
Many industrial applications require Compressed Air/Gas of dry form and high pressure. Trident offers the best products to meet those requirements. For instance, High Pressure Compressed Air and Gas Dryers those are available in both heatless as well as refrigerated types.

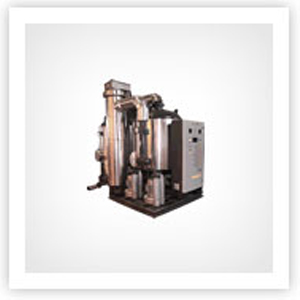

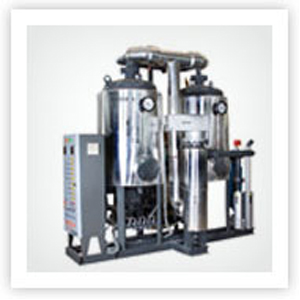

Trident makes a range of
adsorption type compressed air dryers which are
regenerated
by heat. The adsorbants activated alumina or molecular
sieve
renegenrates on heating. These type of Dryers are energy
efficient for dew points below -20 deg C for large air
flows. There are several ways heating the bed of
desiccant.
The most common along with Trident series are as
below:

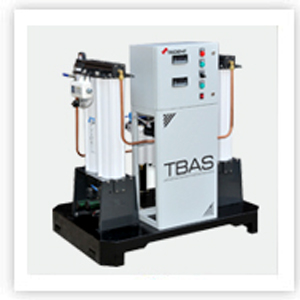

Dryspell medical dryers or
Breathing Air Systems delivers a dewpoint of +2oC as
mandated by NFPA 99. The dryspell medical dryers
operates in
the principle of pressure swing adsorption, hence
removes
more moisture than a refrigeration air dryers, and it
delivers moisture free dry air consistently irrespective
of
flow variation.
Based on medical application criticality, the package
comes
with one working and one stand by dryers. So there is no
need to stop the air dryers for maintenance. Optional
purge
saving system saves purge air upto 60% for a typical
hospital load of 30% to 40%. Optional dewpoint and Co
monitor enables to monitor dewpoint and Co levels as
mandated by NFPA 99.
Custom Solutions engineers
design product packages to suit customer specs.
Customisation services include :
• Packaging of Air Dryers, instruments and other
subsystems.
We provide design calculations, detailed engineering
outputs
to meet the stringent requirements of all leading
project
consultants
• We develop products to meet OEM applications. A few
examples are:
1. 7 scfm, 70 bar(g) compressed air dryer for leak
testing
machines
2. Highly intermittent duty cycle air dryer for circuit
breaker applications
3. High pressure – 100 scfm , 70 bar compressed air
dryer
for aircraft cabin pressure testing
4. Dryers for Railway locomtives
5. Dryers for off road vehicles
• We provide services to customers in the areas of
Engineering management, New product design, detailed
engineering, piping,testing and validation. We have
qualified engineers and well established lab in the area
of
Pneumatics, Compressed air control and automation
systems,
filters, dryers etc.
• We are specialised in following model air dryers.
1. Custom made Heat less Air dryer
2. Blower reactivated Dryer-300m3 /hr to 10,000m3/hr
3. HOC
4. No loss Split Flow
5. Hybrid Dryers
6. High Pressure heat less desiccant dryer (40 to
400Bar)
7. Large capacity and low pressure Refrigeration Dryer
(2000m3/hr to 15,000m3/hr)
• Less space – Compact
inline
design.
• No Electricity requirement.
• No moving parts – Maintenance free.
• Can be used in Hazardous area – Explosion proof.
• Performs better irrespective of external
environments.
• No consumable (Refrigerants or Desiccants).

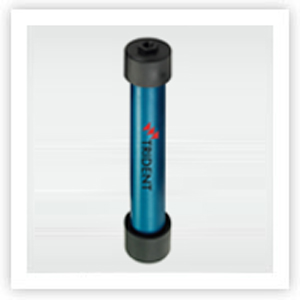

Working Principle :
The Humid compressed air consisits of N2, O2-Water
vapours
and traces of other gases passed through a bundle of
hollow
fibres. The hollow fibres are composed of a membrane
specifically designed to attract and adsorb the water
vapour. Inorder to desorb the water vapour the partial
flow
of dried air expanded to atmospheric pressure and passed
through outside of the hollw fibre bundle in a counter
flow
direction, which will flush out the moisture.
Inorder to ensure better membrane life, the dryer will
be
supplied with two stage filteration viz particulate and
a
coalescer.
Trident Innovative technology membrane compressed air
dryers
are very compact in construction (Less space), Corrosion
free, Noice less, no electricity requirement, and No
moving
parts hence mainatance free. Can be easily installed and
can
used in various applications.
